INF
INF
Analog and Power Bricks

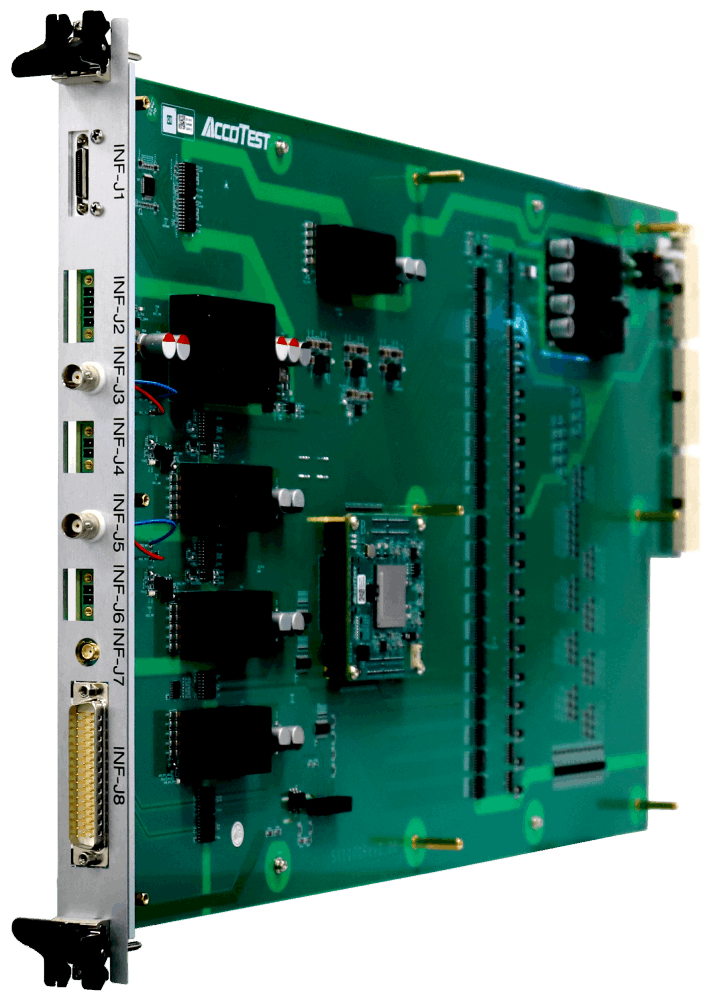

Test head communication interface board for STS8200 PIM platform
Key Features
- Fully isolated interface board for CBITS control to STS8200 PIM Test Head
- 128 bits control with +5V with maximum drive of 100mA per bit
- 32 bits control with +12V with maximum drive 400mA per bit
- Power and communication interface for HVDP
- Serial interface control for HCM1K/DTU6K
Key Features
Maximum Voltage and Current Ratings:
- Fully isolated interface board for CBITS control to STS8200 PIM Test Head
- 128 bits control with +5V with maximum drive of 100mA per bit
- 32 bits control with +12V with maximum drive 400mA per bit
- Power and communication interface for HVDP
- Serial interface control for HCM1K/DTU6K
